TUG BOAT Rope reel winch

닫기
Technical specification and weight
Rope reel winch
Type
Rope reel winch
Capacity
(Ton)
Wire Rope
dia.
(mm)
Winding
Speed
(m/min)
Warping end
Capacity
(Ton)
Brake
Capacity
(Ton)
Rated
point
(Layer)
Weight
(kg)
HRW-2-1D 2 100 40 2 15 1st 4200

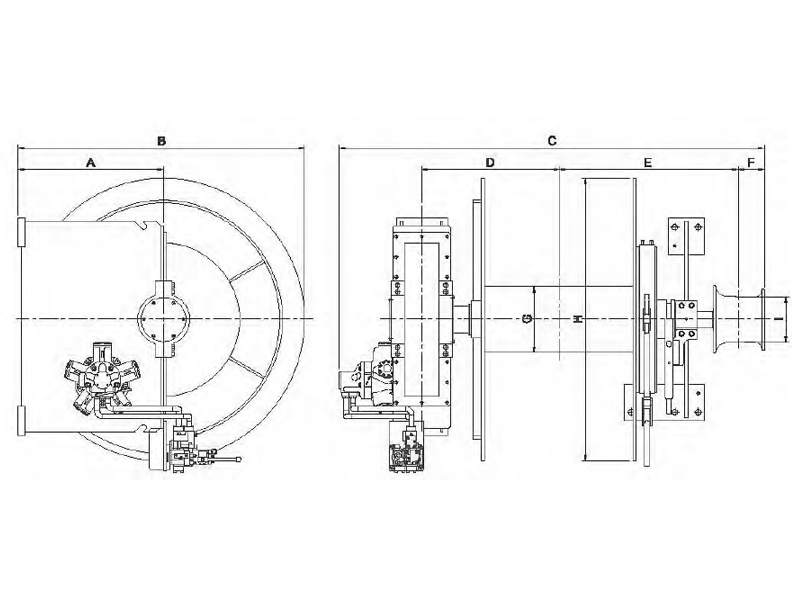

Demension
Capstan
Type
Dimension (mm)
A B C D E F G H I
HRW-2-1D 1000 1975 2930 945 1237 180 460 1950 320
