FAIRLEAD 조선해양기자재의 명가 미래인더스트리(주)입니다.

Anchor fairlead deck mounted balanced weight 1roller type

닫기

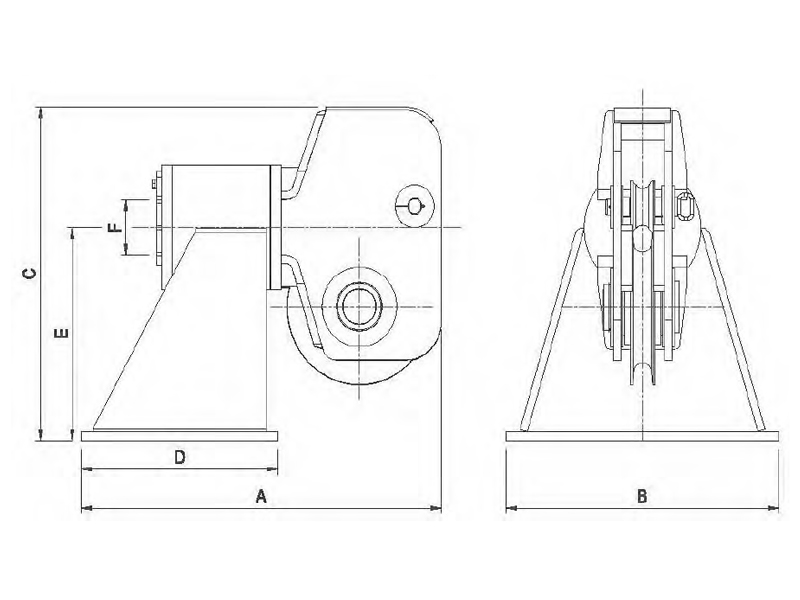

Demension and weight
Fairleader
Type
Wire rope
Dia.
(mm)
Sheave
Dia.
(mm)
Dimensions (mm) Weight
(kg)
A B C D E F
FRL-S1-19 19 210 627 406 511 405 279 114 122
FRL-S1-25 25 254 756 489 625 491 343 143 225
FRL-S1-32 32 305 816 508 714 470 434 143 304
FRL-S1-38 38 406 1018 641 921 533 545 216 658
FRL-S1-44 44 508 1201 724 1156 614 597 241 953
FRL-S1-50 50 610 1343 762 1138 756 648 305 1202
FRL-S1-57 57 632 1515 1022 1543 769 800 330 2177
FRL-S1-64 64 762 1670 1016 1784 769 921 367 2722
FRL-S1-76 76 1118 2739 1330 2642 1228 876 673 7484
  • Remark : Wire rope 90°wrap on sheave and 360°rotation of swivel head.
  • Optional :
    1. Tail Sheave / Tail Roller as requested.
    2. Bolt Mounted.
