CABLE LIFTER UNIT 조선해양기자재의 명가 미래인더스트리(주)입니다.

Cable lefer unit(CU)

닫기

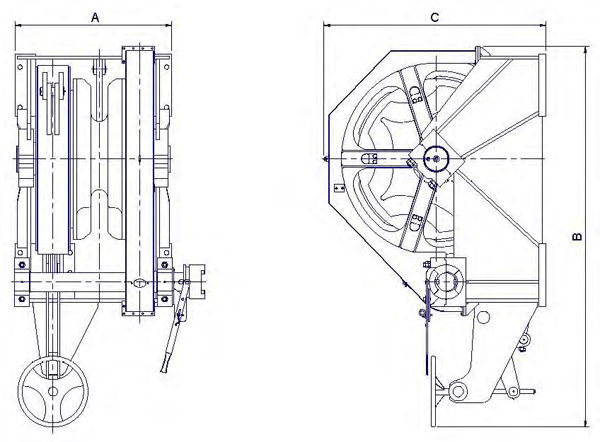

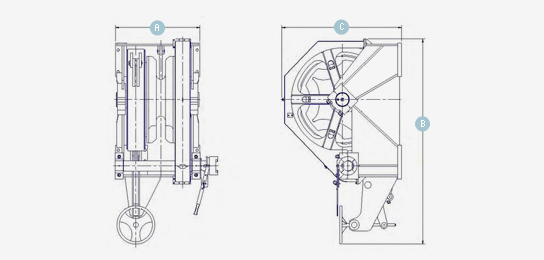

Technical specification and dirension
Type Chain dia.
G3
(mm)
Nominal
Pull
(Ton)
Nominal
Speed
(m/min)
br /eak Holding
Load
(Ton)
Dimension (mm)
A B C
CU-58-G3 58 16 9 119 1200 2500 1500
CU-60-G3 60 17 9 127
CU-62-G3 62 19 9 135 1200 2500 1800
CU-64-G3 64 20 9 143
CU-66-G3 66 21 9 152 1300 2600 1800
CU-68-G3 68 22 9 161
CU-70-G3 70 24 9 169 1300 2800 1950
CU-73-G3 73 26 9 183
CU-76-G3 76 28 9 197 1400 2800 1950
CU-78-G3 78 29 9 207
CU-81-G3 81 32 9 222 1400 3500 2350
CU-84-G3 84 34 9 237
CU-87-G3 87 37 9 252 1400 3800 2350
CU-90-G3 90 39 9 268
CU-92-G3 92 41 9 279 1600 3800 2450
CU-95-G3 95 44 9 296
CU-97-G3 97 46 9 307 1600 3800 2450
CU-98-G3 98 47 9 313
CU-100-G3 100 48 9 324
CU-102-G3 102 50 9 336 1600 4100 2500
CU-105-G3 105 53 9 353
CU-107-G3 107 55 9 365 1800 4100 2500
CU-108-G3 108 57 9 371
CU-111-G3 111 60 9 389
CU-114-G3 114 63 9 408 2000 4200 2700
