ELEC' MOORING WINCH 조선해양기자재의 명가 미래인더스트리(주)입니다.

Ele’ mooring winch
(1Drum)

닫기
Technical specification and weight
Mooring winch
Type
Mooring winch
Capacity
(Ton)
Wire Rope
dia.
(mm)
Nominal
Speed
(m/min)
Slack rope
Speed
(m/min)
Warping end
Capacity
(Ton)
Weight
(kg)
EMW-12-1SD 12 26 0 ~ 15 0 ~ 30 12 2600
EMW-15-1SD 15 30 15 3150
EMW-20-1SD 20 34 20 3800
EMW-25-1SD 25 38 25 5250
EMW-30-1SD 30 44 30 6000
EMW-35-1SD 35 80 35 8000

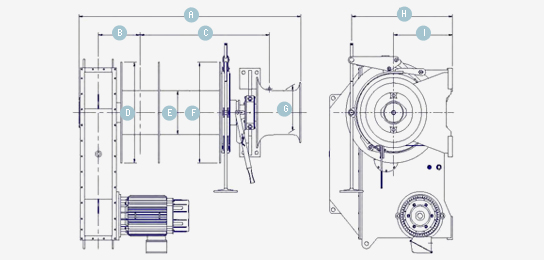

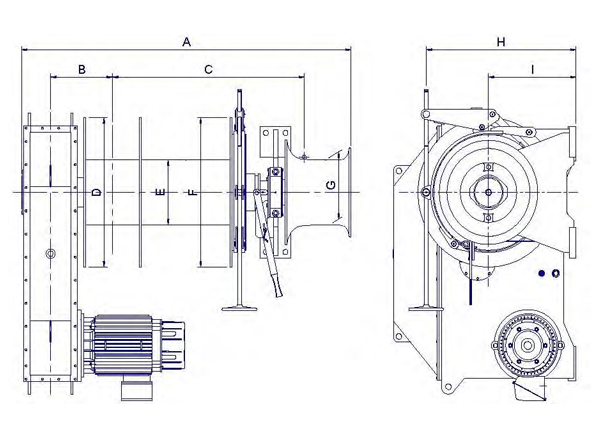

Demension
Windlass Type Dimension (mm)
A B C D E F G H I
EMW-12-1SD 2420 700 1100 900 420 900 450 1200 600
EMW-15-1SD 3170 790 1140 960 480 960 500 1400 800
EMW-20-1SD 3210 810 1160 1100 550 1100 560 1400 800
EMW-25-1SD 3250 830 1180 1220 610 1220 630 1400 800
EMW-30-1SD 3290 850 1200 1420 710 1420 630 1400 800
EMW-35-1SD 3340 600 1860 1690 480 1690 480 1870 900

Hydraulic brake type, clutch type are also available upon request.
