AHTS
(anchor handling tug supply vessel)
anchor handling / towing winch
(anchor handling tug supply vessel)
anchor handling / towing winch
닫기
Technical specification and weight
| Auto Towing winch Type |
Auto Towing winch Capacity (Ton) |
Wire Rope dia. (mm) |
Winding Speed (m/min) |
Brake Capacity (Ton) |
Rated point (Layer) |
Weight (kg) |
|---|---|---|---|---|---|---|
| ATW-250-2D | 250 | 75 | 4 | 400 | 1st | 48,000 |
| ATW-100-2D | 100 | 65 | 5 | 218.67 | 1st | 27,000 |

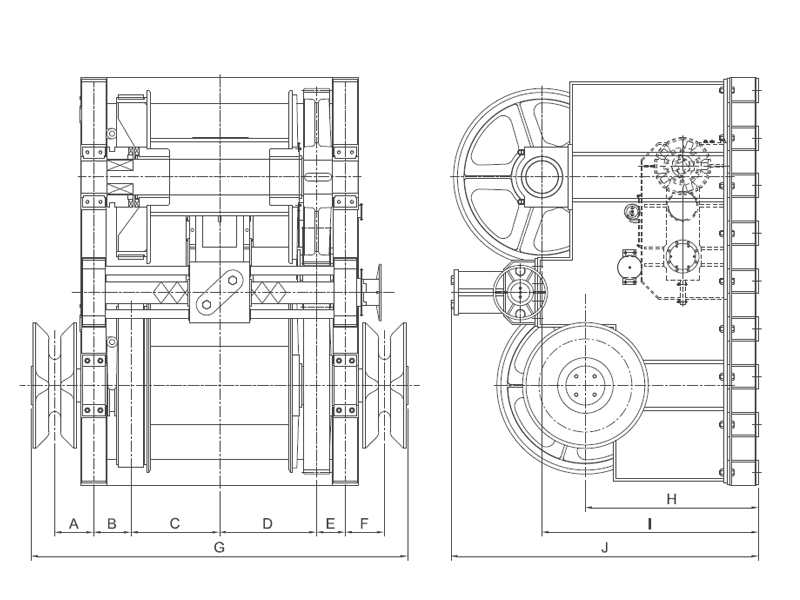

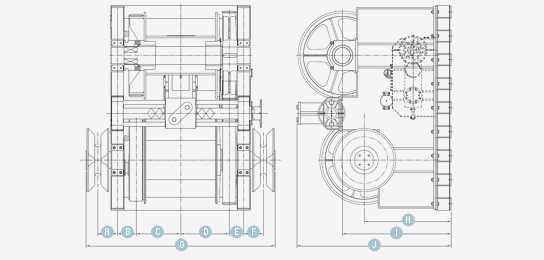

Demension
| Type | Dimension (mm) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | J | |
| ATW-250-2D | 450 | 430 | 1020 | 1120 | 330 | 450 | 4340 | 2000 | 2500 | 3548 |
| ATW-100-2D | 450 | 430 | 1020 | 1120 | 330 | 450 | 4340 | 2000 | 2500 | 3548 |
