Ele’ mooring winch
(2Drum)
(2Drum)
닫기
Technical specification and weight
| Mooring winch Type |
Mooring winch Capacity (Ton) |
Wire Rope dia. (mm) |
Nominal Speed (m/min) |
Slack rope Speed (m/min) |
Warping end Capacity (Ton) |
Weight (kg) |
|---|---|---|---|---|---|---|
| EMW-12-2SD | 12 | 26 | 0 ~ 15 | 0 ~ 30 | 12 | 3800 |
| EMW-15-2SD | 15 | 30 | 15 | 4350 | ||
| EMW-20-2SD | 20 | 34 | 20 | 5000 | ||
| EMW-25-2SD | 25 | 38 | 25 | 6950 | ||
| EMW-30-2SD | 30 | 44 | 30 | 8000 |

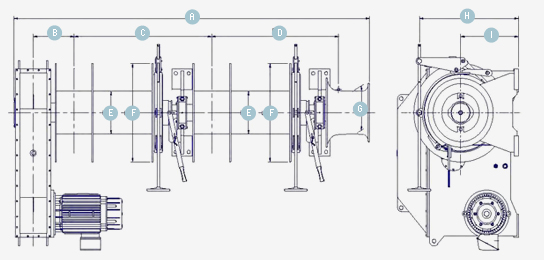

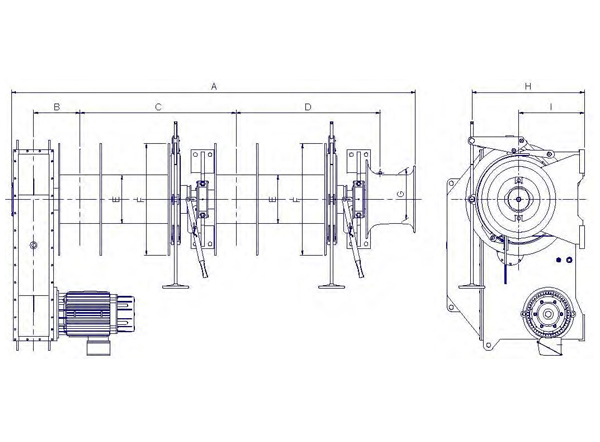

Demension
| Windlass Type | Dimension (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | |
| EMW-12-2SD | 4610 | 700 | 1700 | 1550 | 420 | 900 | 450 | 1200 | 600 |
| EMW-15-2SD | 5400 | 790 | 1740 | 1590 | 480 | 960 | 500 | 1400 | 800 |
| EMW-20-2SD | 5460 | 810 | 1760 | 1610 | 550 | 1100 | 560 | 1400 | 800 |
| EMW-25-2SD | 5520 | 830 | 1780 | 1630 | 610 | 1220 | 630 | 1400 | 800 |
| EMW-30-2SD | 5580 | 850 | 1800 | 1650 | 710 | 1420 | 630 | 1400 | 800 |
Hydraulic brake type, clutch type are also available upon request.
