Offshore FLOATING CRANE anchor winch Electric driven
닫기
Technical specification and weight
| Anchor winch Type |
Anchor winch Capacity (Ton) |
Wire Rope dia. (mm) |
Nominal Speed (m/min) |
Slack rope Speed (m/min) |
Rated at | Brake Capacity (Ton) |
Weight (kg) |
|---|---|---|---|---|---|---|---|
| EAW-50-1D | 50 / 25 | 60 | 0 ~ 20 | 0 ~ 45 | 4th Layer | 200 | 15,000 |
| EAW-40-1D | 40 / 20 | 50 | 5th Layer | 138 | 12,000 | ||
| EAW-30-1D | 30 / 15 | 40 | 6st Layer | 91.2 | 9,500 |

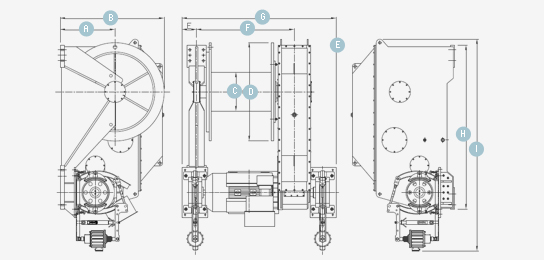

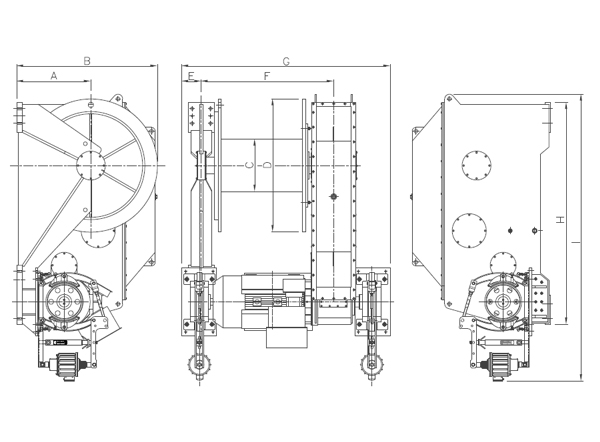

Demension
| Windlass Type | Dimension (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | |
| EAW-50-1D | 1200 | 2300 | 960 | 2200 | 280 | 2240 | 3420 | 3000 | 3990 |
| EAW-40-1D | 1000 | 1900 | 710 | 1800 | 262 | 1790 | 2819 | 2900 | 3890 |
| EAW-30-1D | 900 | 1800 | 640 | 1280 | 250 | 1500 | 2517 | 2600 | 3590 |
