FLOATING DOCK Traction winch(Elec.type)

닫기
Technical specification and weight
Traction winch
Type
Traction winch
Capacity
(Ton)
Wire Rope
dia.
(mm)
Winding
Speed
(m/min)
Warping end
Capacity
(Ton)
Brake
Capacity
(Ton)
Rated
point
(Layer)
Weight
(kg)
ETRW-10-2D 10 40 15 5 18.5 1st 4200
ETRW-20-2D 20 32 20 7 38 5th 5500
ETRW-30-2D 30 32 20 30 53.36 5th 6600

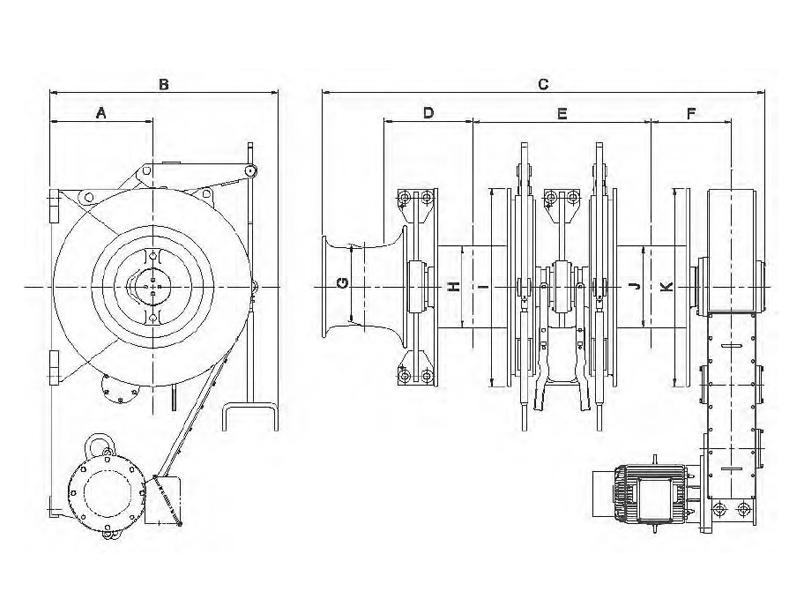

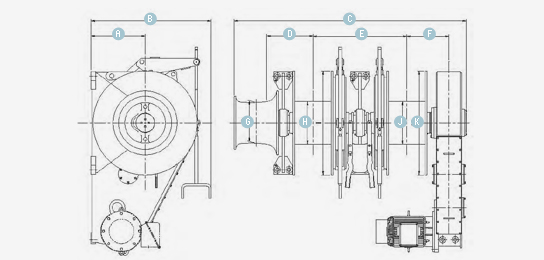

Demension
Capstan
Type
Dimension (mm)
A B C D E F G H I J K
ETRW-10-2D 600 1331 2575 512 1041 468 450 515 1155 515 1155
ETRW-20-2D 800 1630 2760 440 1140 630 320 500 1380 415 1380
ETRW-30-2D 900 1780 3442 773 1410 690 500 640 1280 540 1280
