TUG BOAT Tug winch
닫기
Technical specification and weight
| Tug winch Type |
Tug winch Capacity (Ton) |
Wire Rope dia. (mm) |
Winding Speed (m/min) |
Brake capacity (Ton) |
Rated point (Layer) |
Weight (kg / set) |
|---|---|---|---|---|---|---|
| TGW-5-1D | 10 | 110 | 40 | 80 | 1st | 4175 |

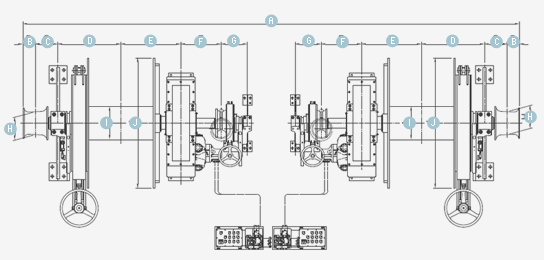

Demension
| Capstan Type |
Dimension (mm) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | J | |
| TGW-5-1D | 6937 | 175 | 315 | 880 | 835 | 565 | 363 | 320 | 460 | 1820 |
